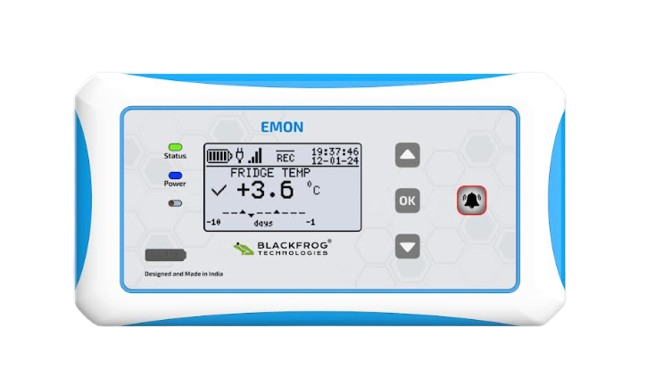

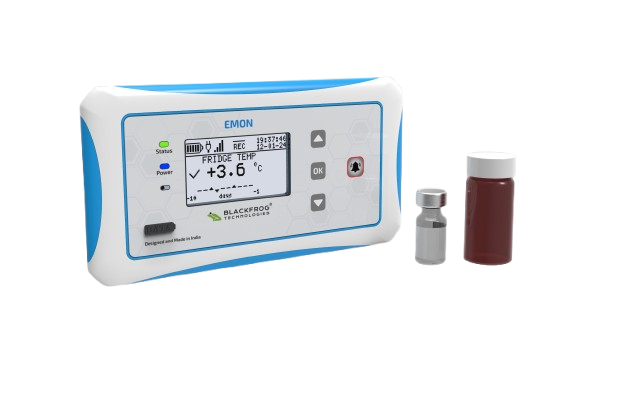

EMON25(EMS)
Equipment Monitoring System

The EMON25 is an IoT-enabled solution designed to continuously track and monitor essential parameters in vaccine/medical refrigerators. It provides real-time insights into key metrics such as internal chamber temperature, door opening history, voltage, and current. The device stores and transmits this data to the cloud for remote access and monitoring. Additionally, it incorporates visual and audio alerts to notify users of any irregular conditions or alarms. This device complies with the WHO PQS E006/DL01.2, E006/EM01.2 and IEC standards.

EMON25(EMS)
Equipment Monitoring System

Key Features

Intelligent Monitoring Features

  • Intuitive display for easy understanding of Refrigerator data.
  • LED indicators for convenient refrigerator status monitoring.
  • LIN/Modbus Interface for Communication with Smart Compressors.
  • USB Type-C Enabled M2M Data Access.
  • Option to Configure Local Date and Time.
  • Wi-Fi and Bluetooth connectivity for Seamless Data Transmission and Download.
  • Integrated 2G/4G communication system for transmitting logged data to the Cloud.
Health Center Jerry
EMon25(EMS) Specifications
Display 128x64 Graphic display
Operating Ambient Temperature -10°C to +55°C
Operating Ambient Humidity 0–95% RH
Operating Voltage 5V DC input via a 2-pin connector, Up to 30V DC input via a 3-pin connector (LIN compatible)
IP Rating IP64 (Front Panel only)
Ambient Temperature Yes (NTC), ±0.5°C from -30°C to +55°C
Freezer Temperature Yes (NTC), ±0.5°C from -30°C to +55°C
Vaccine Compartment Temperature Yes (NTC), ±0.5°C from -30°C to +55°C
Current Sensor Yes, ±5% in the range 0–30 A AC, ±5% in the range 0–10 A DC
Voltage Sensor Yes (Separate for AC/DC), ±2% in the range 0–50 V DC, ±2% in the range 0–600 V AC
Door Sensor Yes (Reed Switch/Plunger)
Condenser Temperature Yes (NTC) (Can also be used for Fridge/Freezer)
Compressor Temperature Yes (NTC) (Can also be used for Fridge/Freezer)
Data Download USB-C
Battery Backup 20 Days (Maximum)
Memory 60-day Data Report, 1-Year Data Storage

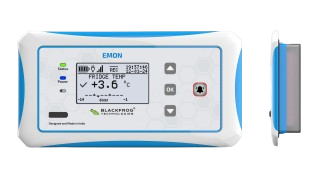

Overall Dimensions (L×W×H) 199mm × 26.5mm × 103mm
Mounting Cutout Dimensions 170.5mm × 80.5mm
*Can be varied depending on the Refrigerator's holdover time.
"Product design and dimensions are subject to change depending on the application.

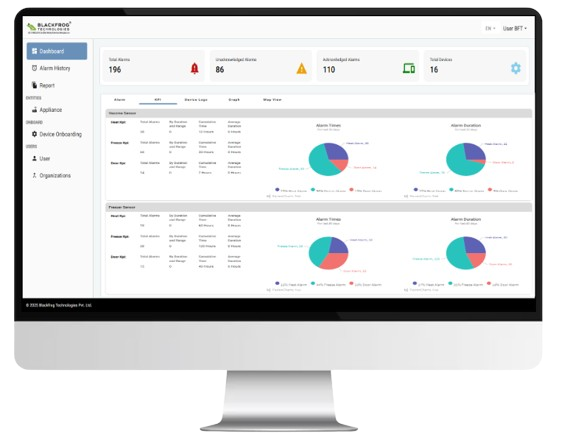

Emon25(EMS) Dashboard

Dashboard Image

The EMS (Equipment Monitoring System) Dashboard is a platform designed to monitor the remote Temperature status, performance, and health of critical equipment. It provides a comprehensive view of sensor data such as temperature, power, voltage, and device activity, enabling timely alerts and alarms for any abnormal conditions. The dashboard helps users track key performance indicators (KPIs), access device logs, view location data on maps, and analyze trends through visual graphs. It supports preventive maintenance, enhances operational efficiency, and ensures compliance by storing historical data for audits and reports. Ideal for applications like cold chain monitoring, the EMS Dashboard ensures continuous, reliable equipment performance through remote access and actionable insights.
